Oracle SOA suite 11g (11.1.1.7) Installation steps for windows 7...!!!

This installation is for a Windows 7 based machine.
You can use these instructions for both 32 and 64bit machines.
You will need at least 4GB of RAM to install all the required components for Oracle SOA Suite 11g.

You will need to download the following files to proceed with the installation.
Go to Oracle SOA suite download page here.
Under Oracle SOA Suite 11g Installations, select release 11.1.1.7 and then Microsoft Windows 32-bit JVM.

Download the following files.

  • Database (OracleXE112_Win32.zip).
  • WebLogic server (wls1036_win32.exe)
  • Repository creation utility (ofm_rcu_win_11.1.1.7.0_32_disk1_1of1.zip).
  • Jdeveloper (jdevstudio11117install.exe).
  • SOA (ofm_soa_generic_11.1.1.7.0_disk1_1of2.zip and ofm_soa_generic_11.1.1.7.0_disk1_2of2.zip) You need to download Jdeveloper SOA extension from a different location.
  • Jdeveloper SOA extension (Download from here).

You need to install these in the following order:
  1. Database.
  2. WebLogic server.
  3. Repository creation utility.
  4. SOA.
  5. Jdeveloper.
  6. Jdeveloper SOA extension.



  • 1) Install the database

    Extract the contents of OracleXE112_Win32.zip to a folder and run setup.exe
    Image 001

    Click next in the following screen

     Image 002




    Accept the terms in the following screen and click next
    Image 003




    Use the default location or change to a location without space In the path.
    Click Next.
    Image 004




    Now, go to the following location :
    C:\Users\user_name\AppData\Local\Temp\{E839CC91-1523-4497-BCFD-5C22565F8553}
    Replace user_name with the logged in username. The last entry in the path might be different for you.
    Make a copy of OracleMTSRecoveryService.reg and rename the copy to KEY_XE.reg
    Now proceed with the installation.
    Image 005

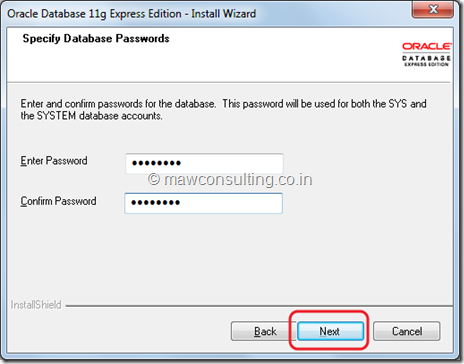

    You can specify a password for the SYS user in the following screen.
    Use welcome1 as the password.
    Image 006




    Review the details and click install.
    Image 007




    Once the installation is complete, click finish.
    Image 008




    Now we need to increase the session and process limit for the database.


    Open SQL Command line From the start menu.

    Image 009




    Run the following commands at the SQL prompt.

    connect sys/welcome1@XE as sysdba
    show parameter session
    show parameter processes
    alter system reset sessions scope=spfile sid='*';
    alter system set processes=300 scope=spfile;

    You will see the following output.
    Image 010
    Image 011

    Image 012




    After running the above commands, stop and start the database

    Image 013




    Open SQL command prompt and run the following commands to verify that the session limit has increased.

    connect sys/welcome1@XE as sysdba
    show parameter session
    show parameter processes
    You should see the following output.
    Image 013




    2) Install WebLogic Server

    Open wls1036_win32.exe
    Click Next.
    Image 007

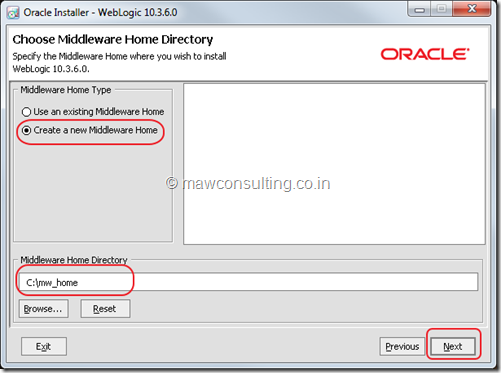

    Select ‘Create a new Middleware Home’.Give the directory path as C:\mw_home If you want to install in any other location, make sure there are no spaces in the path.
    Click Next.
    Image 008






    Deselect the checkbox to receive security updates and Click Next.
    Image 009

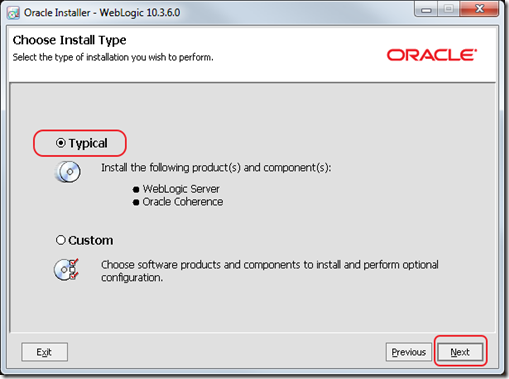

    Select Typical installation and Click Next.
    Image 010




    Review the directories and Click Next.
    Image 011




    Click next.
    Image 012

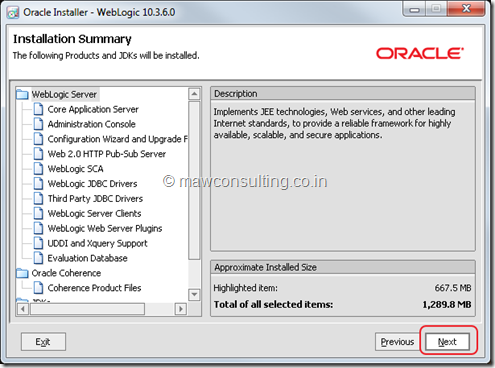

    You will see the summary of installation. Click next.
    Image 013

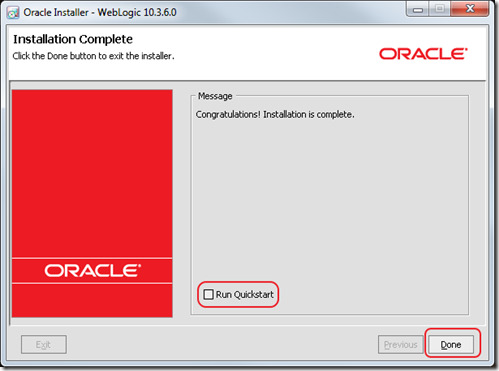

    Uncheck ‘Run Quickstart’ and Click Done when the installation completes.
    Image 015






    3) Create DB schema using RCU

    Extract the contents of ofm_rcu_win_11.1.1.7.0_32_disk1_1of1.zip to a location without any spaces in the path. for e.g. X:\rcuHome

    Open Command Prompt to the following location: X:\rcuHome\BIN
    Run the following commands:

    set RCU_JDBC_TRIM_BLOCKS=TRUE
    echo %RCU_JDBC_TRIM_BLOCKS%
    rcu.bat

    You will see the following output.






    Click next.
    Image 122




    Select Create and click next.
    Image 123




    Enter the following details:
    Database type: Oracle databaseHostname: localhost
    Port:1521
    Service name:XE
    Username: SYS
    Password:welcome1
    Role:SYSDBA
    Click next.
    Image 124

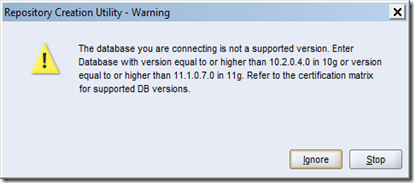

    You can ignore the following warning.
    Image 125

    Click ok  after the prerequisite check.
    Image 126




    Select SOA and BPM infrastructure.
    The dependent components are automatically selected.
    Click next.
    Image 127

    Click ok after the prerequisite check.
    Image 128`

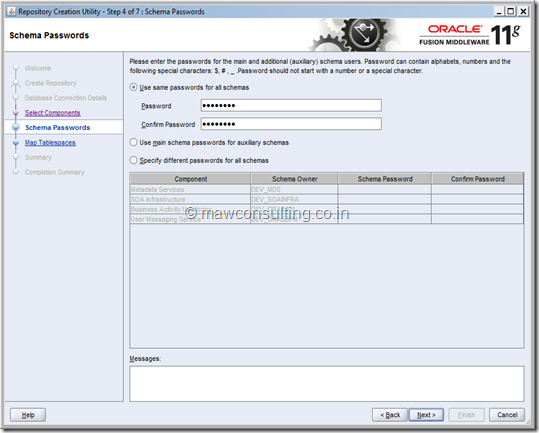

    Select “Use same passwords for all schemas” and enter the password as welcome1
    Click next.
    Image 129




    Click next in the following screen.
    Image 130`
    Click ok to create the table spaces.
    Image 131
    Click ok after the table spaces are created,
    Image 132`




    Click on Create to start creation of the required schemas.
    Image 133







    Click on Close after all the schemas are created successfully.
    Image 134





    4) Install SOA

    Extract the contents of ofm_soa_generic_11.1.1.7.0_disk1_1of2.zip andofm_soa_generic_11.1.1.7.0_disk1_2of2.zipto a folder without any spaces in the path.
    For example: X:\soa

    Open command prompt to the following directory: X:\soa\Disk1
    Run the following command: setup.exe –jreLoc C:\mw_home\jdk160_29
    The jre location is pointing to the JDK installed automatically your middleware home.





    Click Next in the above screen.
    Image 137

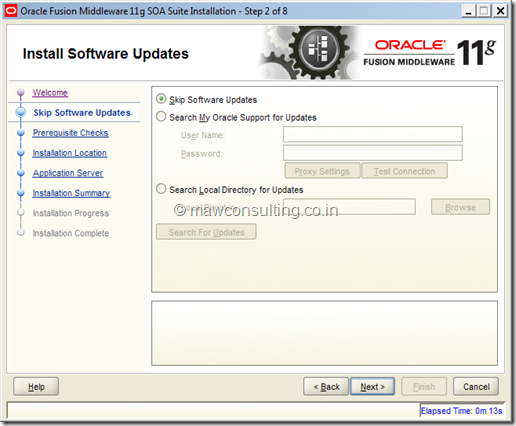

    Skip software updates and click Next.
    Image 138

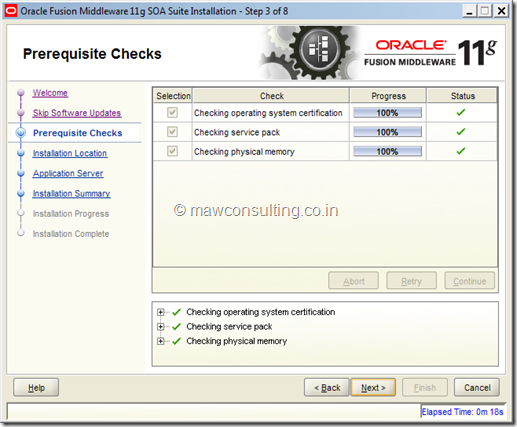

    Click Next. After the prerequisite check.
    Image 139




    Select the middleware home C:\mw_home and click next.
    Image 140




    The WebLogic server will be detected.
    Click next.
    Image 141

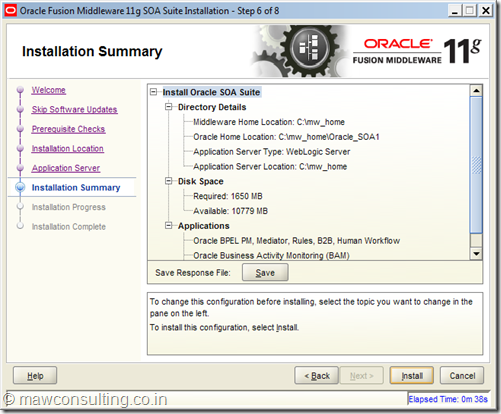

    Review the directory details and click Install.
    Image 142





    Click Next after the installation completes successfully.
    Image 144





    Click Finish.
    Image 145






    4.1) Create SOA domain

    Go to start –> Programs –>Oracle SOA 11g - Home1 and click ‘Configure Application Server’




    Select ‘Create a new WebLogic domain’ and click next
    Image 147




    Select ‘Oracle SOA suite for developers’, ‘Oracle enterprise manager’ and ‘Oracle business activity monitoring’.
    The dependent components if any will be automatically selected.
    Click Next.
    Image 148




    Enter a domain name. For example, soa_domain
    Click Next.
    Image 149




    Enter the following details
    Name:weblogic
    Password: welcome1
    Click Next.
    Image 150




    Select ‘Development Mode’ and ‘Sun JDK’.
    Click Next.
    Image 151

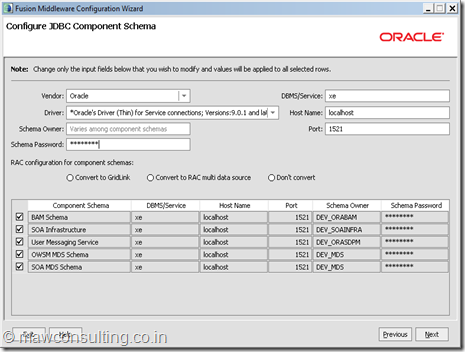

    First, select all the checkboxes for all schemas.
    Then enter the following details:
    Service: xe
    Hostname: localhost
    Port:1521
    Schema Password: welcome1
    Click Next.
    Image 152

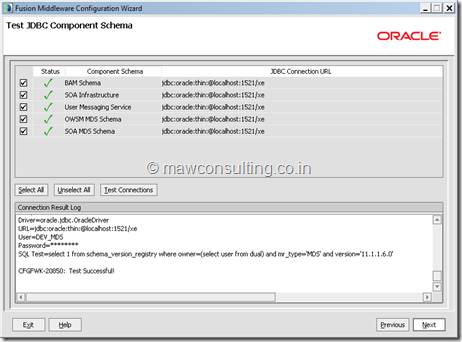

    Click Next after all the tests are completed successfully.
    Image 153

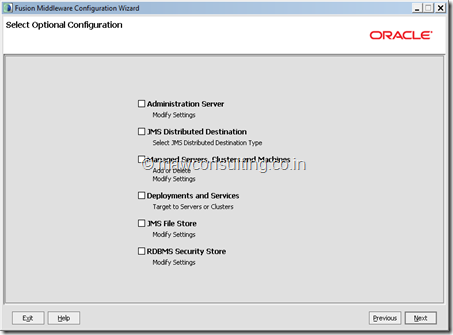

    Don't change anything. Click Next.
    Image 154




    Review the details and click create.
    Image 155




    Once the domain is created, click done.
    Image 156





    5) Install JDeveloper


    Open jdevstudio11117install.exe
    Click Next.
    Image 001




    Select ‘Create a new middleware home’.Give directory as C:\mw_home_jdev
    Click Next.
    Image 002




    Select complete and Click Next.
    Image 003




    Click Next.
    Image 004

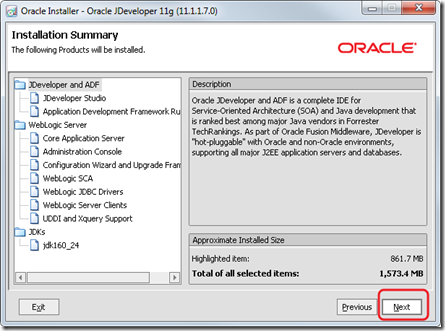

    Click Next.
    Image 005




    Click Next to finish the installation.
    Image 006




    5.1) Install JDeveloper SOA Extension

    Open jdeveloper from the start menu.
    Image 001



    Select ‘Default Role’ and uncheck the checkbox 'Always prompt for role selection on startup'.
    Image 080




    Go to Help –>  Check for Updates




    Click Next.
    Image 082




    Select install from local file.
    Browse for file soa-jdev-extension.zip and open.
    Click Next
    Image 083

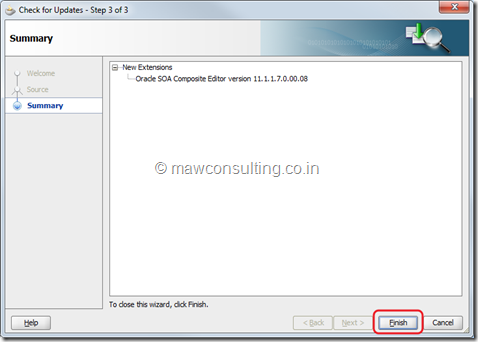

    Click Finish.
    Image 007




    Click Yes to restart the JDeveloper and finish the installation of the SOA extension.
    Image 086


    Once Jdeveloper restarts, Go to Help –>  About
    Image 009

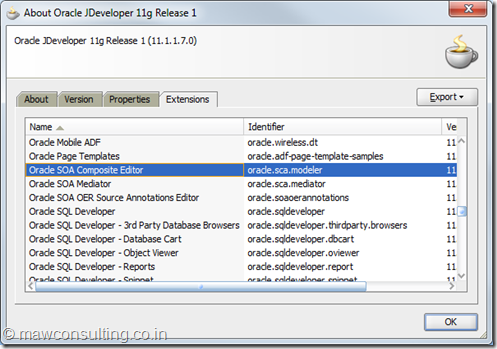

    In the Extensions tab you should see ‘Oracle SOA Composite Editor’
    Image 010




    Starting and Stopping the SOA server

    Go to ‘All Programs’ in the start menu.
    Go to Oracle WebLogic –> User Projects –> soa_domain
    Click ‘Start Admin Server for Weblogic’
    Image 016



    The server will take a couple of minutes to start.
    Once the server starts successfully you should see the following message.
    SOA Platform is running and accepting requests
    Image 017




    To stop the server, press CTRL+C in the server window.



  • Finally enjoy with SOA world ..!!!
