HTTP Basic authentication with SOA Suite 11g

There can be situations where you need to add some security like HTTP basic authentication to your Composite Services or References. Especially when you have some HTTP Binding Services or References. The HTTP Binding Service in SOA Suite 11g also has a SOAP endpoint beside the HTTP endpoint. With the SOAP endpoint you can always use WS-Security instead of the basic authentication, but if that was the case you won't choose for the HTTP Binding.
For this blogpost I will use my http binding example of this blogpost
In this example I have a Mediator with a HTTP Binding Reference. This reference has as endpoint the execute url of the Execute HTTP Binding Service, which is connected to the BPEL Component.

Select the execute Service and configure SOA WS Policies, Here you need to select the oracle/wss_http_token_service_policy . This OWSM policy enables HTTP Basic authentication for HTTP  & SOAP or WSS Username Token in SOAP.

For the Composite Reference you need to use the oracle/wss_http_token_client_policy.

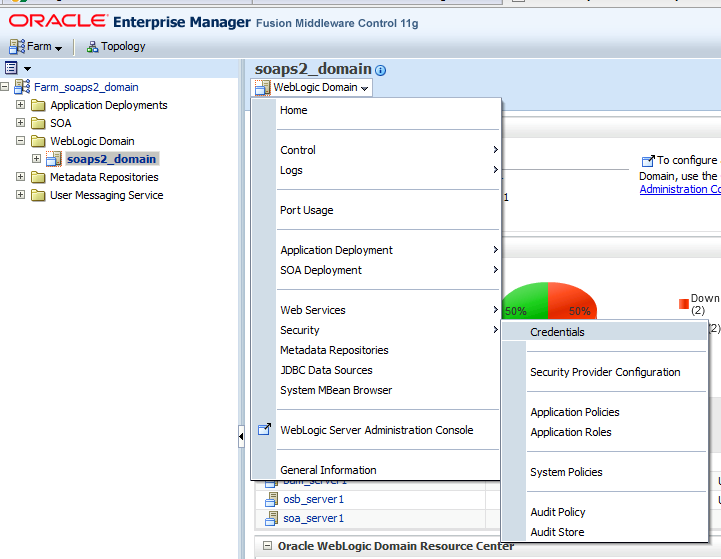

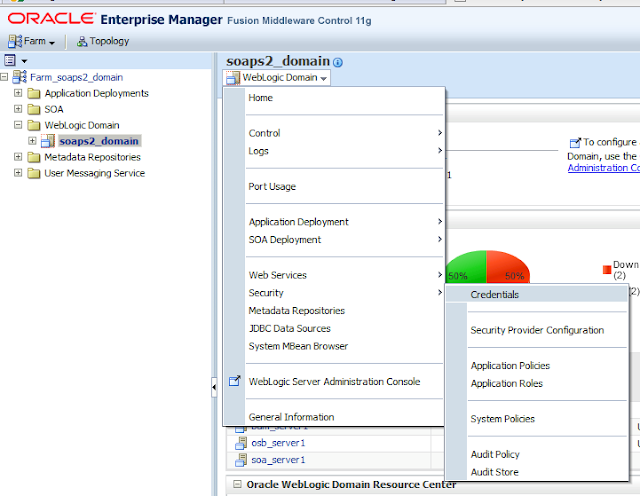

Off course you need to provide the username / password for the basic authentication.  To do this you need to go to the Enterprise Manager Application and select your WebLogic Domain. In the Menu, select the Security menu Item and then go to Credentials.

When you don't have the oracle.wsm.security Map then you need to create this. In the Map you need to add the basic credentials Key where you can provide the username / password for the HTTP Binding Service and Reference.

After rebooting the SOA Server you can test this HTTP Binding Service. I use Wfetch of Microsoft. The internal tester client of WebLogic and Enterprise is not so great with HTTP posts and security.

First test is a POST on the HTTP endpoint with a bad username.  This gives a HTTP 403 Forbidden.

Now with a good username / password and for the POST I only have to provide the request in the body and without the SOAP envelop.

The HTTP Binding service also has a SOAP Endpoint. First we test this with a bad username.

Now with a good username / password. For the SOAP post you need to provide the Content-Type and SOAPAction HTTP Headers and the SOAP envelope with the request.

That's all.

Update by Maarten van Luijtelaar
You can have more than one account on the reference level by overriding the oracle/wss_http_token_client_policy properties. By default the value of csf-key is set to basic.credentials, but you can create a new key in EM and use that as an override.
Also, when not using the policy, adding the properties oracle.webservices.auth.username and oracle.webservices.auth.password with corresponding values will do the trick on external references.
